Our company mainly engages in the manufacturing and sales of various specialized vehicles, including several categories of models such as aerial work vehicles, sprinkler trucks, garbage trucks, road sweepers, RVs, obstacle removal vehicles, and vehicle mounted cranes. For more models, please feel free to consult and negotiate!
Below, we will introduce the different models and heights of high-altitude work vehicles produced by our factory. The high-altitude work vehicles produced by our factory are divided into two types:
1、Folding arm high-altitude work truck, with a working height of 8-22 meters, can be customized according to needs.
2、Telescopic boom aerial work vehicle, with a working height of 14-45 meters, can be customized according to needs。

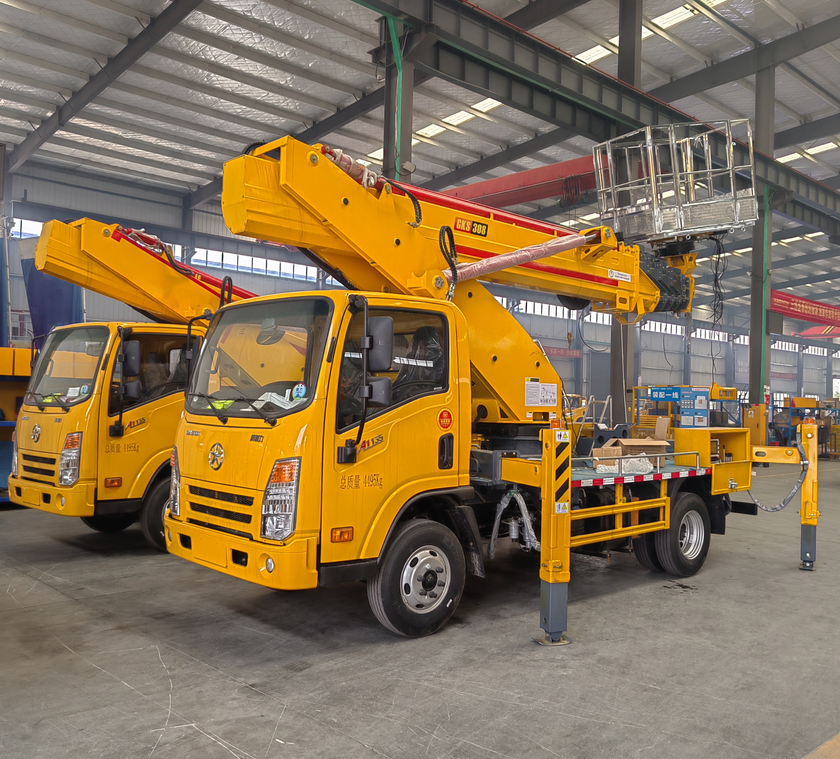

As an example, the parameters of this 30 meter aerial work truck with a Dayun chassis are shown in the following figure
|
Chassis grade |
Da Yun |
|
wheelbase |
3300mm |
|
Type of cab |
Turn left |
|
horsepower |
132 horsepower |
|
emission standard |
National VI |
|
Number of drivers and passengers |
2-3 |
|
Tire specifications |
7.00R16 |
|
Fuel type |
diesel oil |
|
Big arm type |
Telescopic |
|
Number of arm segments |
6 sections |
|
operating system |
Remote control operation, manual control lever, computer operation, emergency power unit. |
|
Working height |
30 meter |
|
Horizontal working span |
15 meters to the side and 20 meters to the rear |
|
Leg shape |
Front V and rear V |
|
Leg span |
5.4 meters horizontally and 5.5 meters vertically |
|
Work bucket size |
1.6/2m*1m*1.2m |
|
Load capacity of the work platform |
≤200kg |
|
Vehicle exterior dimensions |
5998 * 2050 * 3150mm |
|
Vehicle weight |
Approximately 6 tons |
|
Support leg soft leg detection |
Real time detection of the force status of the supporting legs, once any looseness is detected, automatic alarm and limit action will be triggered |
|
Automatic interlocking device for boarding and alighting |
Automatic interlocking of boarding and alighting to prevent simultaneous operation of boarding and alighting functions and achieve safety protection |
|
Emergency stop device |
There are three emergency stop buttons on the car to ensure that all actions can be stopped in emergency situations. |
|
Automatic amplitude limiting |
Ensure that the vehicle operates within a safe range |
|
Remote ignition and shutdown of the engine |
Both the turntable and remote control can control the ignition or shutdown of the engine |
|
Emergency power unit |
When there is no engine malfunction, this function can be used to safely drop airborne personnel back to the ground. |
|
The optional functions include: |
|
|
1、1. Stable function of the work platform |
|
|
2. Support leg cable sensor |
|
|
3. Hook |
|
|
4. Customized size worktable |
|
|
5. English/Russian control system |
|
|
6. Operating the small cab |
|
